Mainboard Asrock B250M Pro4

Thông số kỹ thuật

Thông tin chi tiết Bo mạch chủ (mainboard)
Hãng sản xuất	ASRock
Model	B250 Pro4
Chipset	Intel® B250
CPU hỗ trợ	- Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron® Processors (Socket 1151) - Digi Power design - 6 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology
RAM hỗ trợ	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2400/2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots 7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133. *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Đồ họa	- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics - Gen9 LP, DX11.3, DX12 - HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU) - HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU) - Max. shared memory 1024MB** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. The size of maximum shared memory may vary from different operating systems. Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. **Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Lưu trữ	- 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_2), supports type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. If PCIE2 slot or PCI slot is occupied, the PCIe-type M.2 device on M2_1 socket will run at Gen3 x2 (16 Gb/s). Supports Intel® Optane™ Technology (M2_2 only) Supports NVMe SSD as boot disks* Supports ASRock U.2 Kit
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Khe cắm mở rộng	- 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x4 mode)* - 1 x PCI Express 3.0 x1 Slot (Flexible PCIe) - 1 x PCI Slot - Supports AMD Quad CrossFireX™ and CrossFireX™ *Supports NVMe SSD as boot disks

Kết nối I/O bên trong	- 1 x Print Port Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
Kết nối bảng phía sau	- 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 3 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Theo dõi phần cứng	- CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment
Phần mềm đi kèm	Software - ASRock APP Charger - ASRock XFast LAN* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock UEFI Tech Service *These utilities can be downloaded from ASRock Live Update & APP Shop
Hệ điều hành hỗ trợ	- Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU) - Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)* *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows® 10 driver, please visit ASRock's website for details.
Kích thước	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
Phụ kiện đi kèm	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets

Thông tin chi tiết

Armor Your VR Machine

Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

User friendly UEFI & EZ Mode

ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

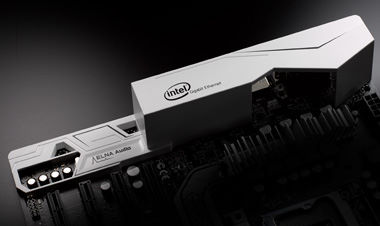

I/O Armor

A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Mainboard Asrock B250M Pro4

Thông số kỹ thuật

Thông tin chi tiết

Armor Your VR Machine

Dual Ultra M.2 For SSD

Intel® LAN

Intel® Optane™ Memory Ready

ELNA Audio Caps

ASRock Intel® 4-Layer Memory POOL Technology

USB Type-C

User friendly UEFI & EZ Mode

Digi Power

Triple Monitor

3 Graphics Outputs

Live Update & APP Shop
