FOR GAMERS
Motherboards with enhanced audio and graphics design, plus improved stability, specifically tailored for gamers.
Modding PC Simulation
12 Power Phase Design
Designed with a 12 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
8 Layer PCB (4 x 2oz Copper) & DDR4 3300+(OC)
The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!

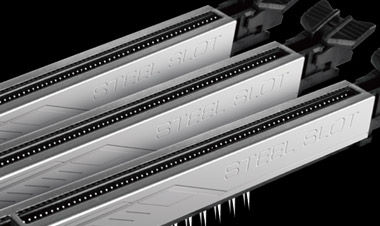

3 PCI-E Steel Slots
Adopts three PCIe Steel Slots, which are built with more solder points on the PCB for better performance and preventing any signal interference with graphics cards. Allows your graphics cards with enhanced signals and to be well-installed in the PCIe slots.
Normal Slots:
Easy to be broken
Easy to be broken
Dual Ultra M.2
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.0.
Dual Intel® LAN
Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.
* Teaming is not supported with Windows® 10.
Dual USB 3.1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 ports built on the rear i/o for supporting next generation USB 3.1 devices and to deliver up to 10 Gbps data transfer rates.
USB 3.1 doubles the data transfer rate
USB 3.1 Type-C doubles the charge speed!
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Creative Sound Blaster™ Cinema 3
Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.
XSplit Broadcaster is a desktop application designed to make your multimedia broadcasting, live-streaming and recording a lot easier and more fun. XSplit Gamecaster is a simplified version of XSplit Broadcaster. We’re giving XSplit Broadcaster & XSplit Gamecaster 3-month premium license bundle for FREE! A US$ 24.95 value!
* XSplit is provided by SplitmediaLabs, Ltd. Restriction may apply and the offer is subject to change, termination or discontinuation by SplitmediaLabs, Ltd. without prior notice. Please visit the website for further details : http://www.asrock.com/microsite/Fatal1ty/
F-Stream
Modify Your Weapon
Key Master
Consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.
F-Stream
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities.
Fatal1ty Mouse Port
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.
Gaming Armor
Built to Kill
Allows ASRock to be your most trustworthy ally, providing both hardware and software support.
CPU Power
● Hi-Density Power Connector
● Ultra Dual-N MOSFET
● Ultra Dual-N MOSFET
Memory
● 15μ Gold Contact in DIMM Slots
VGA Card
● 15μ Gold Contact in PCI-E Steel Slots
Audio
● Creative Sound Blaster™ Cinema 3
Cooling
● 8 Layer PCB x 2oz Copper
● XXL Aluminum Alloy Heatsink
● XXL Aluminum Alloy Heatsink
Internet
● Dual Intel® LAN

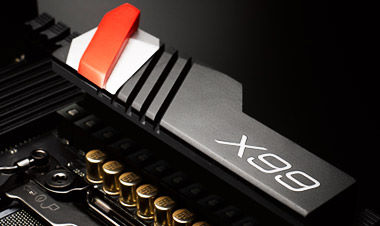

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

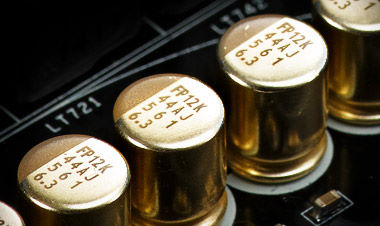

Nichicon 12K Platinum Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.
Ultra Dual-N MOSFET (UDM)
Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Supports DDR4 ECC / RDIMM Memory Modules
This motherboard is capable of supporting DDR4 ECC and RDIMM (Registered DIMM) memory modules which deliver server-grade performance and durability for high-powered computing systems.
* ECC is supported with Intel® Xeon® processors.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
