Mainboard Asrock X99 Taichi

Thông tin chi tiết

• All-Rounder

  "Taichi" represents the philosophical state of undifferentiated absolute and infinite potential. It's ASRock's biggest offering in the easy-to-use, rock-solidly stable line of motherboards that fulfills every task – with style! Specially designed for the all-round PC user who wants a motherboard packed with premium features.

  Modding PC Simulation



  12 Power Phase Design

  Designed with a 12 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

  8 Layer PCB (4 x 2oz Copper) & DDR4 3300+(OC)

  The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!

  3 PCI-E Steel Slots

  Adopts three PCIe Steel Slots, which are built with more solder points on the PCB for better performance and preventing any signal interference with graphics cards. Allows your graphics cards with enhanced signals and to be well-installed in the PCIe slots.

  Normal Slots:
  Easy to be broken

  Dual Ultra M.2

  The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

  Dual Band 802.11ac WiFi

  No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.0.

  Dual Intel® LAN

  Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.

  * Teaming is not supported with Windows® 10.

  Dual USB 3.1 (Type-A + Type-C)

  This motherboard has a pair of onboard Type-A and Type-C USB 3.1 ports built on the rear i/o for supporting next generation USB 3.1 devices and to deliver up to 10 Gbps data transfer rates.

  USB 3.1 doubles the data transfer rate USB 3.1 Type-C doubles the charge speed!

  Water Pump Header

  This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

  SLI HB Bridge Free Bundled

  The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.



  XXL Aluminum Alloy Heatsink

  Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

  I/O Armor

  A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

  Premium 60A Power Choke

  Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

  Nichicon 12K Platinum Caps

  A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

  Ultra Dual-N MOSFET (UDM)

  Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.

  Sapphire Black PCB

  Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

  High Density Glass Fabric PCB

  High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.



  User friendly UEFI & EZ Mode

  ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.



  Digi Power

  Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.



  Supports DDR4 ECC / RDIMM Memory Modules

  This motherboard is capable of supporting DDR4 ECC and RDIMM (Registered DIMM) memory modules which deliver server-grade performance and durability for high-powered computing systems.

  * ECC is supported with Intel® Xeon® processors.



  Live Update & APP Shop

  ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

  more

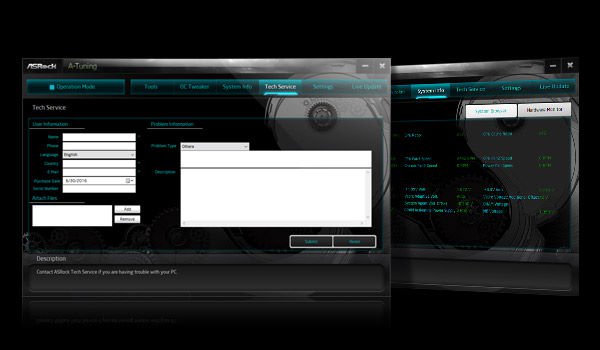

  A-Tuning

  A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.



  The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

  The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
