Thông số kỹ thuật
| CPU | Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 |

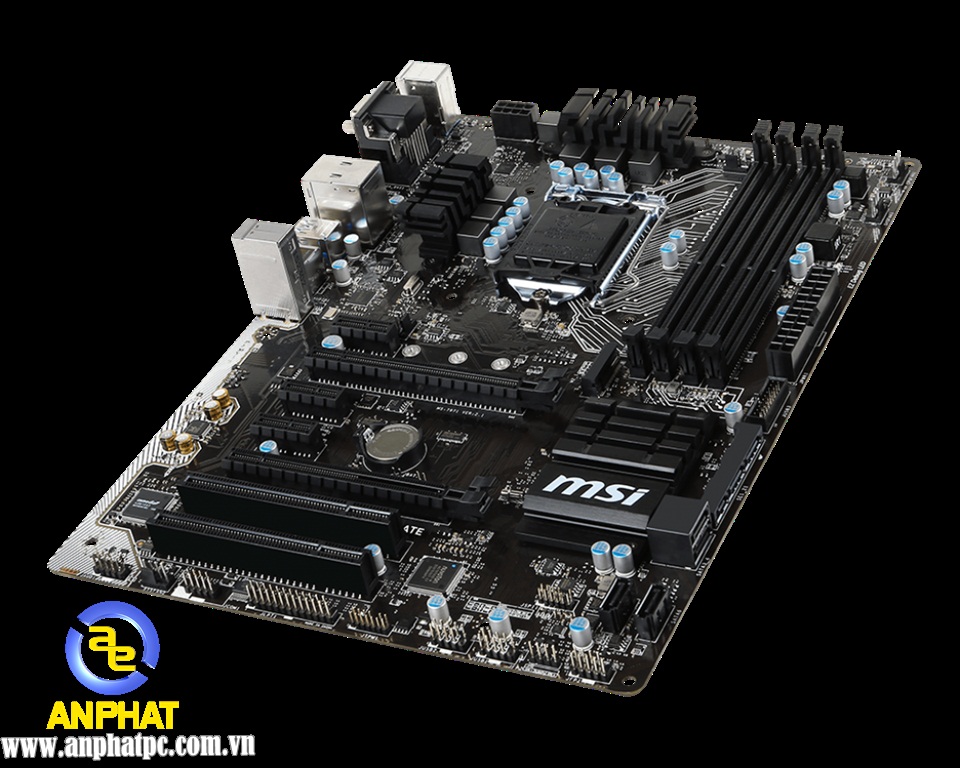

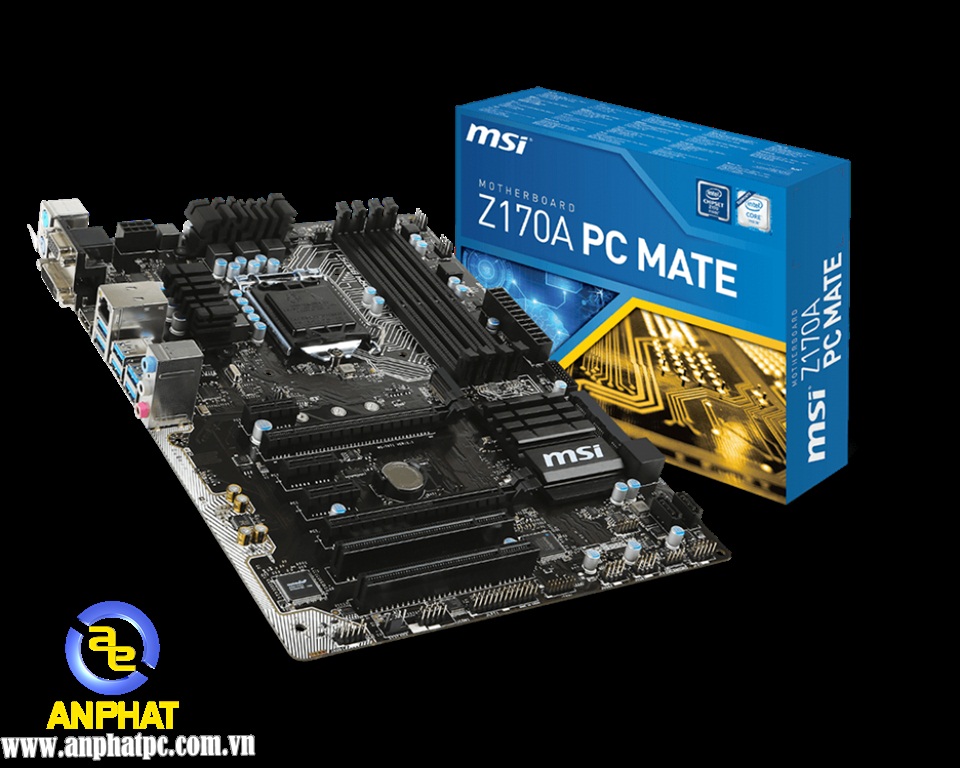

| Sku | MSI Z170A PC MATE |
| Chipset | Intel® Z170 Chipset |
| Memory | 4 x DDR4 memory slots, support up to 64GB Supports DDR4 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz Dual channel memory architecture Supports ECC, un-buffered memory ECC UDIMM memory (non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | • 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz • 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz • 1 x VGA port, support a maximum resolution of 1920x1200@60Hz |
| Audio | • Realtek® ALC887 Codec • 7.1-Channel High Definition Audio |
| LAN | • 1 x Realtek RTL8111H Gigabit LAN controller |
| Expansion Slots | • 2 x PCIe 3.0 x16 slots (support x16, x16/ x4 modes) • 3 x PCIe 3.0 x1 slots • 2 x PCI slots |
| Storage Interface | • Intel® Z170 Express Chipset |
| USB | • ASMedia® ASM1142 Chipset - 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports onthe back panel • Intel® Z170 Chipset - 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connector) - 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors) |
| Internal I/O Connectors | - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 1 x SATAe connector (is compatible with SATA1~2) - 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) - 2 x 4-pin CPU fan connectors - 3 x 4-pin system fan connectors - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Parallel port connector - 1 x Clear CMOS jumper |

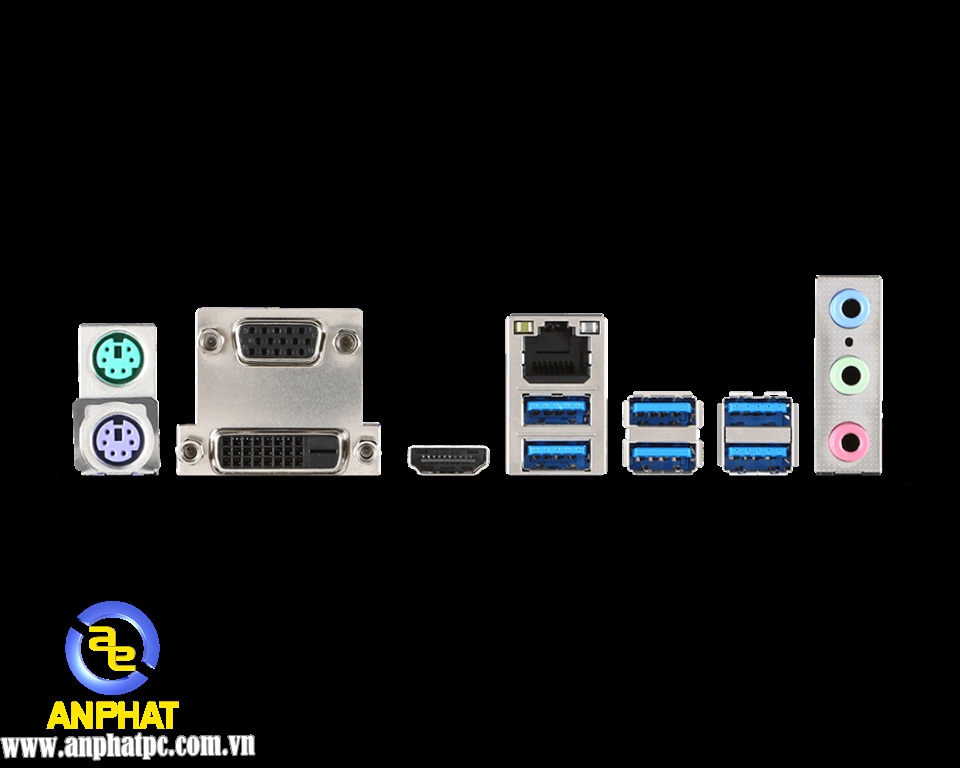

| Back Panel Connectors | - 1 x PS/2 mouse port - 1 x PS/2 keyboard port - 1 x VGA port - 1 x DVI-D port - 1 x HDMI™ port - 1 x LAN (RJ45) port - 4 x USB 3.1 Gen1 ports - 2 x USB 3.1 Gen2 ports - 3 x audio jacks |
| Operating System | Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit |
| Form Factor | 12 in. x 8.9 in. (30.4 cm x 22.5 cm) ATX Form Factor |
