Thông số kỹ thuật

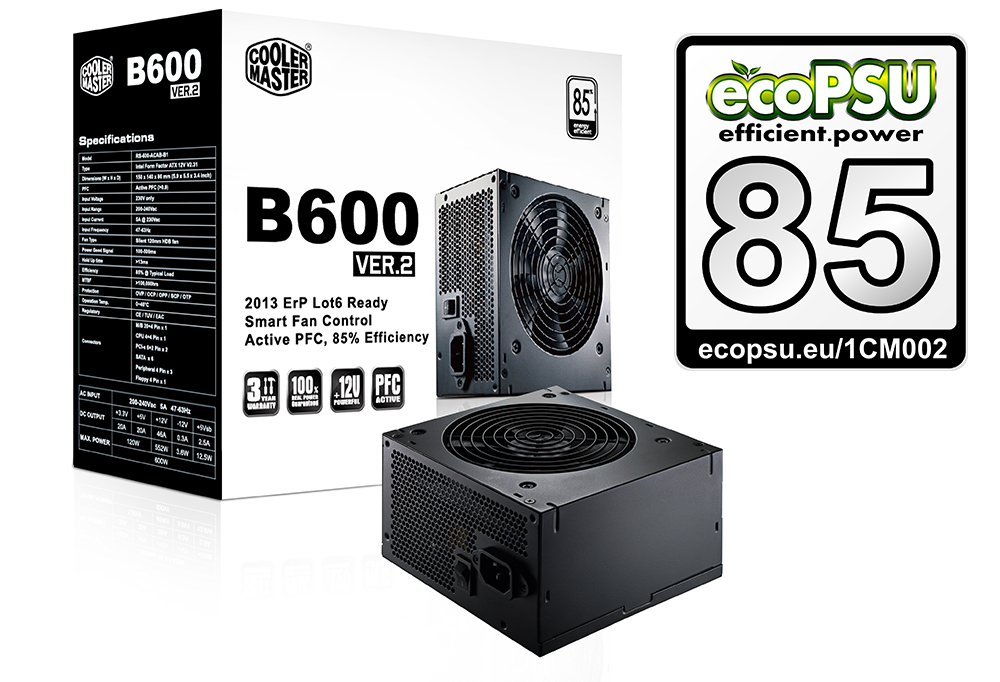

| Model | RS-600-ACAB-B1 |
| Type | Intel Form Factor ATX 12V V2.31 |
| Dimension | 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch (W x L x H) |
| PFC | Active PFC (>0.9) |
| Input Voltage | 230V only |
| Input Range | 200-240Vac |
| Input Current | 5A@230Vac |
| Input Frequency Range | 47-63Hz |
| Fan Type | Silent 120mm HDB fan |
| Power Good Signal | 100-500ms |
| Hold Up Time | >13ms |
| Efficiency | >85% @ Typical Load |
| MTBF | >100,000 hrs |
| Protection | OCP / OVP / OPP / OTP / SCP |
| Operation Temperature | 0~40ºC |
| Regulatory | CE / TUV / EAC |
| Connector | M/B 20+4 Pin x 1 CPU 4+4 Pin x 1 PCI-e 6+2 Pin x 2 SATA x 6 Peripheral 4 Pin x 3 Floppy 4 Pin x 1 |
