Thông số kỹ thuật

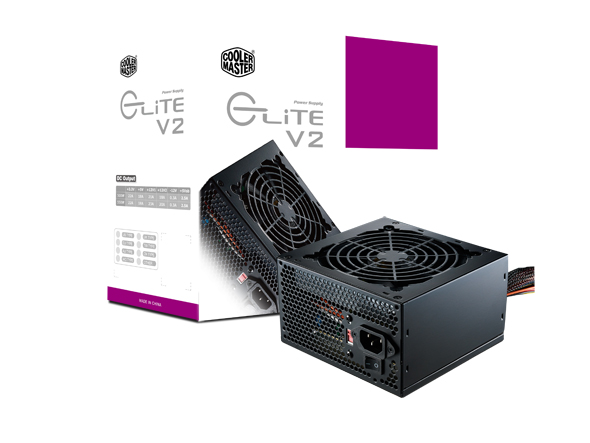

| Model | RS500-PCARN1 |
| Type | Intel Form Factor ATX 12V V2.3 |
| Dimension (W x L x H) | 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch |
| Input Voltage | 115/230Vac |
| Input Range | Select Switch |
| Input Frequency Range | 60/50 Hz |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 75% Typically |
| MTBF | >100,000 Hours |
| Protection | OVP/UVP/OPP/OCP/SCP |
| Output Capacity | 500W |
| Operation Temperature | 0~40°C |
| Regulatory | FCC/UL/EAC/BSMI |
| Fan | 120mm Sleeve fan |
| Connector | M/B 20+4 Pin x 1 CPU 4+4 Pin x 1 PCI-e 6 Pin x 1 SATA x 4 4 Pin Peripheral x 3 4 Pin Floppy x 1 |
